Introduction

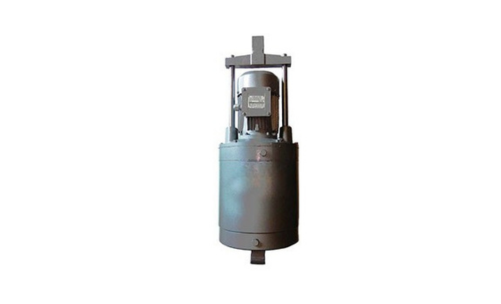

Electro-hydraulic thruster (st)-520

An electro-hydraulic thruster is a device that develops linear thrust (or force) required to Operate the required mechanism. The input to the device is a three-phase supply. The thrusters are widely used to actuate. Thruster shoe brakes, commonly used in material Handling machines. Thrusters in various models develop 15 kg to 295 kg. In stroke lengths of 51 mm, 76 mm & 127 mm.

Thrusters should be mounted with in ± 10° from vertical. Working fluid thrusters should be mounted with in ± 10° from vertical. Working fluid – transformer oil to bs 148.

Technical data

  • Thruster model: st – 520
  • Lifting force: 18 kg
  • Stroke: 50 mm
  • Current: 0.4 amps
  • Power: 90 watt
  • Oil capacity: 2 liters transformer oil
  • Weight: 6 kg
  • Voltage a.c.: 415v 3ø,ac
  • Ingress protection motor only: ip-54 (is/iec 600529:2001)
  • Ambient temperature: 50oc max
  • No.of start: 720/hr
Introduction

Electro-hydraulic thruster (st)-535

An electro-hydraulic thruster is a device that develops linear thrust (or force) required to operate the required mechanism. The input to the device is a three-phase supply. The thrusters are widely used to actuate. Thruster shoe brakes, commonly used in material handling machines. Thrusters in various models develop 15 kg to 295 kg. In stroke Lengths of 51 mm, 76 mm & 127 mm.
Thrusters should be mounted with in ± 10° from vertical. Working fluid thrusters should be mounted with in ± 10° from vertical. Working fluid – transformer oil to bs 148.

Technical data

  • Thruster model: st – 535
  • Lifting force: 34 kg
  • Stroke: 50 mm
  • Current: 0.5 amps
  • Power: 150 watt
  • Oil capacity: 3 liters transformer oil
  • Weight: 16 kg
  • Voltage a.c.: 415v 3ø,ac
  • Ingress protection: ip-55 (is/iec 600529:2001)
  • Ambient temperature: 50oc max
  • No.of start: 720/hr
Introduction

Electro-hydraulic thruster (st)-545

An electro-hydraulic thruster is a device that develops linear thrust (or force) required to Operate the required mechanism. The input to the device is a three-phase supply. The thrusters are widely used to actuate. Thruster shoe brakes, commonly used in material handling machines. Thrusters in various models develop 15 kg to 295 kg. In stroke lengths of 51 mm, 76 mm & 127 mm.
Thrusters should be mounted with in ± 10° from vertical. Working fluid thrusters should be mounted with in ± 10° from vertical. Working fluid – transformer oil to bs 148.

Technical data

  • Thruster model: st – 545
  • Lifting force: 46 kg
  • Stroke: 50 mm
  • Current: 0.6 amps
  • Power: 180 watt
  • Oil capacity: 3 liters transformer oil
  • Weight: 16 kg
  • Voltage a.c.: 415v 3ø,ac
  • Ingress protection: ip-55 (is/iec 600529:2001)
  • Ambient temperature: 50oc max
  • No.of start: 720/hr
Introduction

Electro-hydraulic thruster (st)-870

An electro-hydraulic thruster is a device that develops linear thrust (or force) required to Operate the required mechanism. The input to the device is a three-phase supply. The thrusters are widely used to actuate. Thruster shoe brakes, commonly used in material Handling machines. Thrusters in various models develop 15 kg to 295 kg. In stroke lengths of 51 mm, 76 mm & 127 mm.
Thrusters should be mounted with in ± 10° from vertical. Working fluid thrusters should be mounted with in ± 10° from vertical. Working fluid – transformer oil to bs 148.

Technical data

  • Thruster model: st – 870
  • Thruster model: st – 870
  • Stroke: 76 mm
  • Current: 0.7 amps
  • Power: 200 watt
  • Oil capacity: 5 liters transformer oil
  • Weight: 34 kg
  • Voltage a.c.: 415v 3ø,ac
  • Ingress protection: ip-55 (is/iec 600529:2001)
  • Ambient temperature: 50oc max
  • No.of start: 720/hr
Introduction

Electro-hydraulic thruster (st)-8110

An electro-hydraulic thruster is a device that develops linear thrust (or force) required to Operate the required mechanism. The input to the device is a three-phase supply. The thrusters are widely used to actuate. Thruster shoe brakes, commonly used in material handling machines. Thrusters in various models develop 15 kg to 295 kg. In stroke lengths of 51 mm, 76 mm & 127 mm.
Thrusters should be mounted with in ± 10° from vertical. Working fluid thrusters should Be mounted with in ± 10° from vertical. Working fluid – transformer oil to bs 148.

Technical data

  • Thruster model: st – 8110
  • Lifting force: 114 kg
  • Stroke: 76 mm
  • Current: 0.8 amps
  • Power: 250 watt
  • Oil capacity: 5 liters transformer oil
  • Weight: 34 kg
  • Voltage a.c. : 415v 3ø,ac
  • Ingress protection: ip-55 (is/iec 600529:2001)
  • Ambient temperature: 50oc max
  • No.of start : 720/hr
Introduction

Electro-hydraulic thruster (st)-13200

An electro-hydraulic thruster is a device that develops linear thrust (or force) required to Operate the required mechanism. The input to the device is a three-phase supply. The thrusters are widely used to actuate. Thruster shoe brakes, commonly used in material Handling machines. Thrusters in various models develop 15 kg to 295 kg. In stroke Lengths of 51 mm, 76 mm & 127 mm.
Thrusters should be mounted with in ± 10° from vertical. Working fluid thrusters should Be mounted with in ± 10° from vertical. Working fluid – transformer oil to bs 148.

Technical data

  • Thruster model: st – 13200
  • Lifting force: 225 kg
  • Stroke: 127 mm
  • Current: 1.10 amps
  • Power: 420 watt
  • Oil capacity: 9 liters transformer oil
  • Weight: 55 kg
  • Voltage a.c.: 415v 3ø,ac
  • Ingress protection:ip-55 (is/iec 600529:2001)
  • Ambient temperature: 50oc max
  • No.of start: 720/hr
Introduction

Electro-hydraulic thruster (st)-13300

An electro-hydraulic thruster is a device that develops linear thrust (or force) required to Operate the required mechanism. The input to the device is a three-phase supply. The Thrusters are widely used to actuate. Thruster shoe brakes, commonly used in material Handling machines. Thrusters in various models develop 15 kg to 295 kg. In stroke lengths of 51 mm, 76 mm & 127 mm.
Thrusters should be mounted with in ± 10° from vertical. Working fluid thrusters should be mounted with in ± 10° from vertical. Working fluid – transformer oil to bs 148.

Technical data

  • Thruster model: st – 13300
  • Lifting force: 295 kg
  • Stroke: 127 mm
  • Current: 1.25 amps
  • Power: 420 watt
  • Oil capacity: 9 liters transformer oil
  • Weight: 55 kg
  • Voltage a.c.: 415v 3ø,ac
  • Ingress protection: ip-55 (is/iec 600529:2001)
  • Ambient temperature: 50oc max
  • No.of start: 720/hr
