Introduction

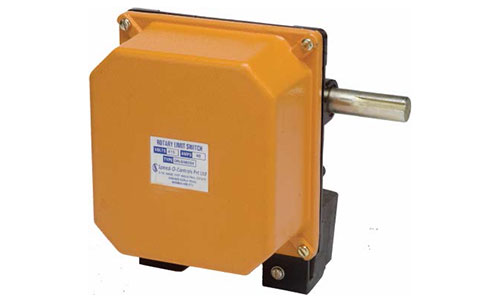

GRLS/48/2SH

Rotary Geared Limit Switch GRLS is used to trip motor supply when the moving loads reach the extreme end positions of working zone. The driving motion is transmitted by worm gear through worm shaft. The rotations & movements are transmitted to switches by adjustable cams. Complying to IEC/EN 60947-5-1,IEC/EN 60529, IEC 60068-2-78, IEC 60068-2-30.

Application

A Rotary Geared Limit Switch are suitable for use on reversing drives such as Hoists, Winches, Rolling Mills & various other mechanisms used in steel plants such as Coke Oven, Feeding Oven Machinery etc. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Technical data

Body Material: Aluminium Die Cast
Protection Degree: IP-55 Confirming to (IS/IEC : 60529(2001)
Gear Ratio: 48:1
Drive: Worm Drive
Cable Entries: 2x3/4’’ Conduit
Contact Material: Silver Cadmium
Rated Voltage Insulation: 500 V.A.C.
Rated Voltage Insulation: 500 V.A.C.
No. Of Contacts: 2NC OR 2NO

Introduction

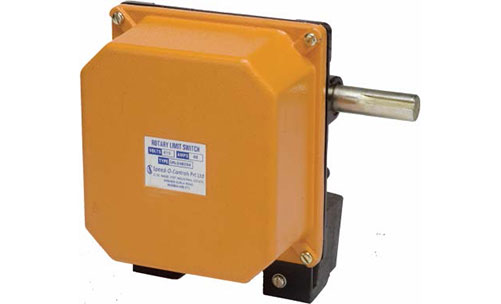

GRLS/60/2SH

Rotary Geared Limit Switch GRLS is used to trip motor supply when the moving loads reach the extreme end positions of working zone. The driving motion is transmitted by worm gear through worm shaft. The rotations & movements are transmitted to switches by adjustable cams. Complying to IEC/EN 60947-5-1,IEC/EN 60529, IEC 60068-2-78, IEC 60068-2-30.

Application

A Rotary Geared Limit Switch are suitable for use on reversing drives such as Hoists, Winches, Rolling Mills & various other mechanisms used in steel plants such as Coke Oven, Feeding Oven Machinery etc.

Technical data

Body Material: Aluminium Die Cast
Protection Degree: IP-55 Confirming to (IS/IEC : 60529(2001)
Gear Ratio: 60:1
Drive: Worm Drive
Cable Entries: 2x3/4’’ Conduit
Contact Material: Silver Cadmium
Rated Voltage Insulation: 500 V.A.C.
Thermal Test Current: 40 Amps
No. Of Contacts: 2NC OR 2NO
Cam Setting: Adjustable

Introduction

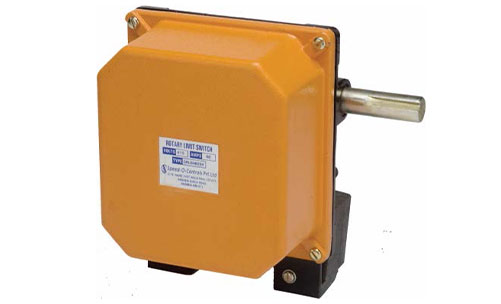

GRLS/96/2SH

Rotary Geared Limit Switch GRLS is used to trip motor supply when the moving loads reach the extreme end positions of working zone. The driving motion is transmitted by worm gear through worm shaft. The rotations & movements are transmitted to switches by adjustable cams. Complying to IEC/EN 60947-5-1,IEC/EN 60529, IEC 60068-2-78, IEC 60068-2-30.

Application

A Rotary Geared Limit Switch are suitable for use on reversing drives such as Hoists, Winches, Rolling Mills & various other mechanisms used in steel plants such as Coke Oven, Feeding Oven Machinery etc.

Technical data

Body Material: Aluminium Die Cast
Protection Degree: IP-55 Confirming to (IS/IEC : 60529(2001)
Gear Ratio: 96:1
Drive: Worm Drive
Cable Entries: 2x3/4’’ Conduit
Contact Material: Silver Cadmium
Rated Voltage Insulation: 500 V.A.C.
Thermal Test Current: 40 Amps
No. Of Contacts: 2NC OR 2NO
Cam Setting: Adjustable
