Introduction

Master Controller(IP-41)

Master Controller is housed in enclosure and provided with an easily removable cover with ample area for maintenance. The cam shaft is mounted on bearing bushes on walls of housing. The Cam are made of thermoplast material and fixed on square spindle switch which is moved by a handle. The cams are cut to correspond to the switching program Aluminum die cast Powder Coated Suitable for Hoist-Grab, Mill duty, E. O. T. Cranes and Rolling mill drives.

Technical data

Body Material: Sheet Steel Enclosure
Protection Degree: IP - 41(IS/IEC-60529(2001)
Mounting Position: Horizontal
Contact Material: Silver Cadmium
Rated Voltage: 500 V. A. C.
Thermal Test Current: 10Amps./40Amps
Cable Entries: 2 x 20, 2 x 26 standared conduict
Input Speed: 1200 RPM, Maximum
Contacts: Single break
No. Of Contacts: 24 maximum
No. Of Steps: 6-0-6 maximum
Optional: Spring return/deadman’s handle arrangement

Introduction

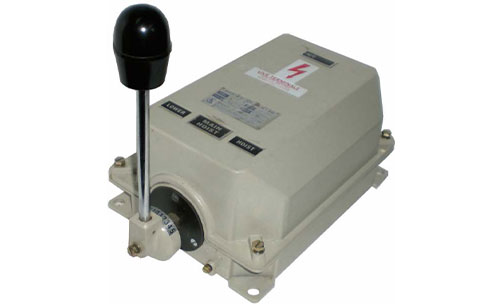

Master Controller(IP-54)

Master Controller is housed in enclosure and provided with an easily removable cover with ample area for maintenance. The cam shaft is mounted on bearing bushes on walls of housing. The Cam are made of thermoplast material and fixed on square spindle switch which is moved by a handle. The cams are cut to correspond to the switching program Aluminum die cast Powder Coated Suitable for Hoist-Grab, Mill duty, E. O. T. Cranes and Rolling mill drives.

Technical data

Body Material: Aluminium Die Cast
Protection Degree: IP - 54(IS/IEC-60529(2001)
Mounting Position: Horizontal
Contact Material: Silver Cadmium
Rated Voltage: 500 V. A. C.
Thermal Test Current: 40Amps
Cable Entries: 2 x 20, 2 x 26 standared conduict
Input Speed: 1200 RPM, Maximum
Contacts: Single break
No. Of Contacts: 24 maximum
No. Of Steps: 6-0-6 maximum
Optional: Spring return/deadman’s handle arrangement
