Joystick Controller

Introduction

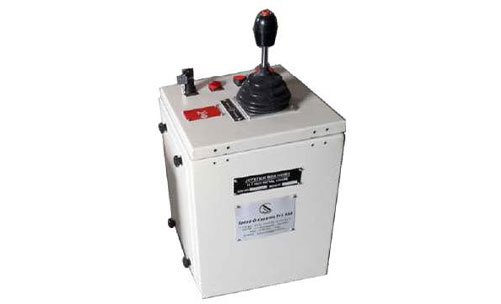

Joystick Controller (JSC SERIES)

Joystick Controllers are modern and compact design used for flexible operations. Highly reliable and ease of maintenance makes them suitable for usage in high precision control of heavy machine. The controller handles can maximum operate at an angel of 42 degrees with a maximum operating force of 50N. Available with analog signal & Potentiometer.

Technical data

Original place: India
Model: JSC
Power: AC
Rated Current: 10/40A
Rated Voltage: 500VAC
Max. Operated Lever Force: ≤ 50N
Max.Operated Direction: 8
Max. Controlling Movement: 2
Max.Step Per Direction: 6
Max. Contact Per Movement: 24
Operating Angle: ±42 deg
Spring Return: SR
Push Button (1NC + 1NO): PB
Orientation: Hori./Ver.
Enclosure: Ecl
Max. Pot Per Movement: 4

Introduction

Jcq-sq multi-axis joystick controller

Jcq-sq series industrial multi-axis joystick controller is mainly used in hydraulic proportional control, variable frequency motor control, remote control or electro-hydraulic applications such as crane, forklift, aerial work platforms, hoist, civil engineering, rotary table (drilling rig), trucks, mobile hydraulics, shield tunneling machine, marine, construction machinery, cabin vehicles, military vehicles, military robotics, precision machine tools, material handling equipment, etc.
