Lever Type imit Switch

Providing the best construction policy to customers.
Introduction

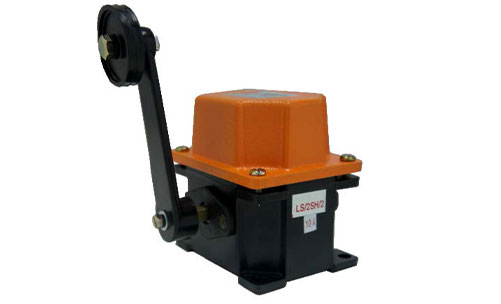

10A Models LS

Lever Type Limit Switch operates the control changeover contacts of motor of an moving equipments when a cam moving with loads actuates the lever of Limit Switch. This turns the camon a square shaft and operate the NO/NC change over contact elements.

Technical data

  • Body Material: Alluminium Die Cast ( Powder Coated )
  • Protection Degree: IP-55 Confirming to (IS/IEC-60529(2001)
  • Mounting Position: Floor
  • Cable Entries: 2, 3/4’’ Conduit
  • No. Of Contacts: MAX 2
  • Contact Material: Silver Cadmium
  • Wire Connection: Screw Terminal
  • Rated voltage: 500 V.A.C. Max
  • Thermal Test Current: 10 A
Introduction

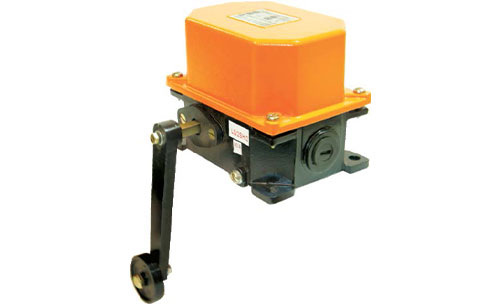

40A Models LS

Lever Type Limit Switch operates the control changeover contacts of motor of an moving equipments when a cam moving with loads actuates the lever of Limit Switch. This turns the camon a square shaft and operate the NO/NC change over contact elements.

Technical data

  • Body Material: Alluminium Die Cast (Powder Coated )
  • Protection Degree: IP-55 Confirming to (IS/IEC- 60529(2001)
  • Mounting Position: Floor
  • Cable Entries: 2, 3/4’’ Conduit
  • No. Of Contacts: MAX 4
  • Contact Material: Silver Cadmium
  • Wire Connection: Screw Terminal
  • Rated voltage: 500 V.A.C. Max
  • Thermal Test Current: 40 A
Introduction

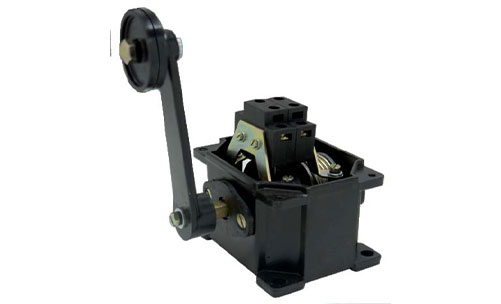

10 A Models LS – AL

Lever Type Limit Switch operates the control change- over contacts of motor of an moving equipments when a cam moving with loads actuates the lever of Limit Switch. This turns the cam/on a square shaft and operate the NO/NC change over contact elements.

Technical data

  • Body Material: Aluminium Die Cast (Powder Coated)
  • Body Material: Aluminium Die Cast (Powder Coated)
  • Body Material: Aluminium Die Cast (Powder Coated)
  • Cable Entries: “2, ¾” Conduit
  • No. of Contacts : MAX 2
  • Contact Material: Silver Cadmium
  • Wire Connection: Screw Terminal
  • Rated Voltage: 500 V.A.C. Max
  • Thermal Test Current: 10 A
Introduction

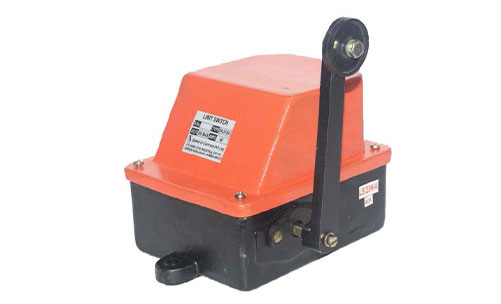

LS-2SH4

Lever Type Limit Switch operates the control change-over contacts of motor of an moving equipments when a cam moving with loads actuates the lever of Limit Switch. This turns the camon a square shaft and operate the NO/NC change over contact elements.

Technical data

  • Body Material: Alluminium Die Cast ( Powder Coated )
  • Protection Degree: IP-54 Confirming to (IS/IEC-60529(2001)
  • Mounting Position: Floor
  • Cable Entries: 1 x 3/4’’ Conduit
  • No. Of Contacts: 4
  • Contact Material: Silver Cadmium
  • Wire Connection: Screw Terminal
  • Rated voltage: 500 V.A.C. Max
  • Thermal Test Current: 40 Amps.
