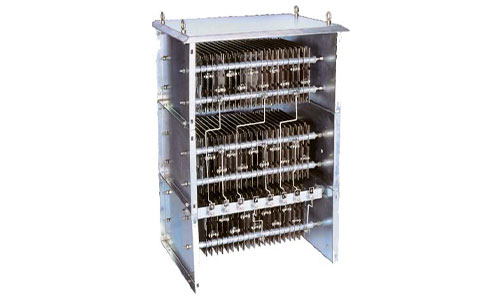

Braking Resistors are used in the d. c. Link of the frequency converter. A braking chopper activates the resistor. If the output frequency converter drops-be it by a control process, a drop operating frequency of the motor, the motor takes on the function of a generator. The consequence is arise in the link voltage. If this voltage exceeds the specific value of the unit in resistor. If the voltage drops to a value just above the grid voltage of the link, the chopper will interrupt the circuit. This process will be repeated until the motor speed once again matches the applied operating frequency. The braking resistor takes on the energy and converts it into heat
