AC Solenoid Brake

Providing the best construction policy to customers.
Introduction

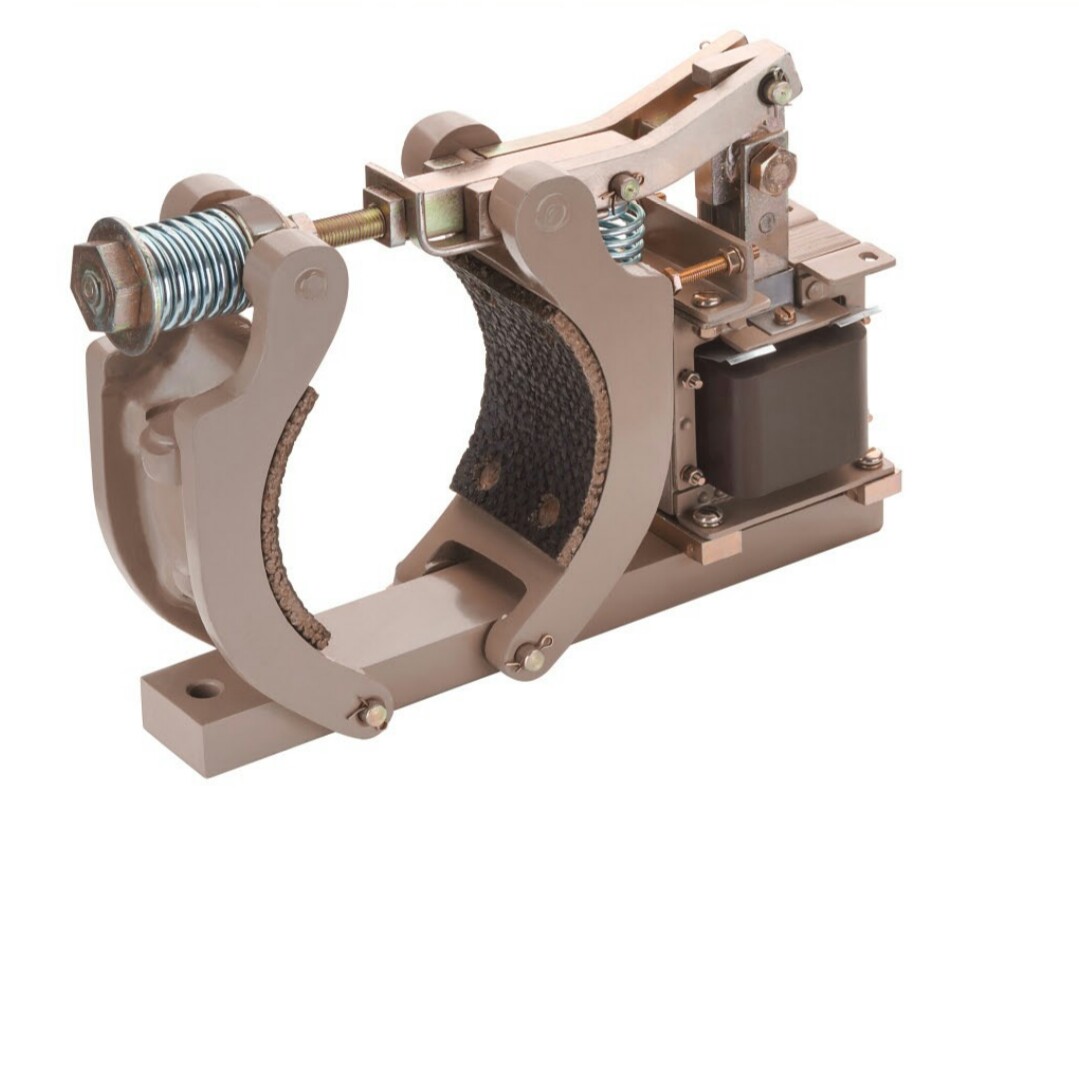

AC Solenoid Shoe Brake

Our company is regarded among the prominent manufacturers and suppliers of high quality AC Solenoid Shoe Brake. Offered shoe brakes are effective when electric is supplied and known for their accident preventing capacity. These brakes are widely appreciated among the clients for their hassle-free installation, shock proof body construction and optimum performance.

Technical data

  • Brand: Labh Engineering
  • Frequency: 50Hz
  • Material: Mild Steel
  • Packaging Type: Corrugated Box
  • Phase: 2
  • Surface Finishing: Paint
  • Min Drum Diameter: 4 Inch
  • Max Drum Diameter: 10 Inch
  • Country of Origin: Made in India

Features:

  • This is a spring loaded normally ON Failsafe Brake
  • Consists of Electromagnetic coil, Plunger, Torque spring and Liner riveted to Brake Shoes
  • Works on 415 V AC, 2 Phase, 50 Hz supply
  • Function is to bring to stop, moving / rotating machinery like motor / gearbox
  • Holds / stops the load in desired place. Instant stop.
  • Robust design.
  • Consumes low power

Applications:

  • All Material Handling and Lifting Equipments
  • Hoisting : electric wire rope Hoists and Crabs
  • Cross travel and Long travel : EOT / Gantry / Goliath / Derrick Cranes
  • Winches and Conveyors
  • Lifts and Elevators
  • Brake motors
Labh Engineering
